Document Control

Role	Name	Title	Department
Author	Henry Singh	DevOps Engineer	ECDi ACE Infra
Reviewer	Todd Michael Bushnell	Platform Engineer	ECDi ACE Infra
Approver	Saima Sherazi	Infrastructure Lead & Manager	ECDi ACE Infra

Purpose

This Installation Verification (IV) describes the procedures to install and configure the Direct Data Connection (DDC) application. Depending on the nature of the related Change Request, all or only some parts of this IV will require execution. The parts of this IV that do not apply must be indicated by checking the “This section is not applicable to this execution” box and providing initials and date. This document must be revised and re-approved if a Change Request requires additional information.

Scope

If executed in its entirety, all system components within the scope of this document will be installed. This IV document covers only the actual installation and configuration of the Direct Data Connection (DDC) application.

Execution Procedure

This section describes the procedure for completing this IV and the resulting supporting documents. During the course of its execution, the executor shall:

Deploy software from the relevant software repository tool or the deployment files location in accordance with applicable standard operating procedures.
Attach any supporting documentation, if any; signed, dated and labeled with the corresponding IV page/step numbers.

Installation Environment

This section details the target environment to which the installation package will be deployed. The name and type of instance on which the installation is being performed should be recorded in the table below.

Step	Record of Environment
Installation Environment	☐ Test/SIT, - [ ] UAT, ☐ Pre-Production, ☐ Production
Configuration Item
Change Request #
Deployment Artifact Location

Installation Prerequisites

Terraform Cloud privileged access
Terraform Cloud Agents running in AWS account.
Privileged access for the desired DDC AWS account
- Non-Production: AWS_ENT_B_ACEDDCDV_2026848 (951412642259)
- Production: AWS_ENT_B_ACEDDCPRD_2129961 (5501463360920)
Read access for the desired DDC repository
- Non-Production: DDCOrg/terraform-ddc-dev
- Production: DDCOrg/terraform-ddc-prod

Installation Instructions

Please note that there are two repositories managing all of DDC infrastructure:

DDCOrg/terraform-ddc-dev: Manages the Dev AWS account hosting the test, sit and dev environments.
DDCOrg/terraform-ddc-prod: Manages the Prod AWS account hosting the qa, uat and prod environments.

The installation procedures are effectively the same for both accounts so choose the appropriate repository depending on your use case.

AWS Infrastructure Provisioning

These instructions will install the following components:

AWS Virtual Private Cloud (VPC)
AWS Network Firewall
AWS Secrets Manager
AWS Key Management Service (KMS)
AWS Relational Database Service (RDS)

Checkout Code

git clone DDCOrg/terraform-ddc-dev or DDCOrg/terraform-ddc-prod, depending on your use case, and cd into the cloned directory.

Provision AWS VPC

cd into eu-west-1/vpc-ddc-{env}-svcs (where {env} represents your desired DDC environment)
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/vpc-ddc-{env}-svcs)
Set VCS branch, if applicable to your use case
Click your workspace name to exit settings
Click Actions —> Start new run to execute a Terraform plan
Once complete, review the plan to ensure everything looks appropriate and then approve to provision your VPC

Provision AWS Network Firewall

cd into eu-west-1/network-firewall
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/network-firewall)
Set VCS branch, if applicable to your use case
Click your workspace name to exit the settings
Click Actions —> Start new run to execute a Terraform plan
Once complete, review the plan to ensure everything looks appropriate and then approve the provision of your network firewall.

Provision AWS Secret manager

cd into eu-west-1/secrets-mgmt
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/secrets-mgmt)
Set VCS branch, if applicable to your use case
Click your workspace name to exit the settings
Click Actions —> Start new run to execute a Terraform plan
Once complete, review the plan to ensure everything looks appropriate and then approve the provision of your secret manager.

Provision AWS KMS Key

cd into eu-west-1/kms-key
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/kms-key)
Set VCS branch, if applicable to your use case
Click your workspace name to exit the settings
Click Actions —> Start new run to execute a Terraform plan
Once complete, review the plan to ensure everything looks appropriate and then approve the provision of your kms key.

Provision AWS RDS Database

cd into eu-west-1/rds-cluster
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/rds-cluster)
Set VCS branch, if applicable to your use case
Click your workspace name to exit the settings
Click Actions —> Start new run to execute a Terraform plan
Once complete, review the plan to ensure everything looks appropriate and then approve the provision of your RDS cluster.

Provision Direct Data Connection (DDC) Application

cd into eu-west-1/eu-west-1/ddc-app-stack/{env} (where {env} represents your desired DDC environment). and create a Terraform main.tf, terraform.tf and outputs.tf file under the appropriate environment path (e.g. eu-west-1/ddc-app-stack/{env}).
terraform init to initialize the Terraform Cloud (TFCloud) workspace
Login to TFCloud and select the newly created workspace
Click Settings —> General, change Execution Mode to Agent and choose the appropriate ace-ddc agent pool for your use case
Click Settings —> Version Control, choose the Version Control workflow, select GitHub DDCOrg, select your working GitHub repository and finally set the Terraform working directory to your active directory (e.g. eu-west-1/ddc-app-stack/{env})
Set VCS branch, if applicable to your use case
Click your workspace name to exit settings
Click Actions —> Start new run to execute a Terraform plan
Once it’s finished, please review the plan to make sure everything looks appropriate and then approve to provision of the ddc application stack.

Here is the folder structure for the DDC application

├── eu-west-1
│   ├── ddc-app-stack
│   │   ├── dev
│          ├── main.tf
│          ├── outputs.tf
│          ├── terraform.tf
│          ├── README.md
├── global
└── .gitignore

Example

# main.tf (resource file)
module "ddc_{env}" {
  # environment must match the environment name added to iMedidata's whitelist
  # and database_schema_name cannot contain hyphens
  source                 = "app.terraform.io/gene-gred-ace/ddc-stack/module"
  version                = "1.0.6"
  name                   = "ddc"
  environment            = "{env}"
  domain_name            = "gene-ddc-dev.com"
  vpc_name               = "ddc-svcs-{env}"
  github_connection_name = "roche-github-enterprise"
  repo_name              = "DDCOrg/gene-ddc"
  branch_name            = "{branch_name}"
  database_schema_name   = "ddc_{env}"
  account_id             = "951412642259"
  rds_sg_name            = "rds-sg"
  rest_api_stage_name    = "dev"
  mock_site_bucket       = "ddc-dev-mock-site-pull"
  aws_secretmanager_name = "secret-ddc-{env}"
  cognito_user_pool_name = "ddc-{env}-userpool"
  lambda_node_runtime    = "nodejs16.x"
}

# terraform.tf (backend file)
terraform {
  backend "remote" {
    hostname     = "app.terraform.io"
    organization = "gene-gred-ace"

    workspaces {
      name = "{env}-ddc-stack-euw1"
    }
  }
}

# outputs.tf (output file)
output "lambda_edge_function" {

  description = "The ARN of Lambda edge function"
  value       = module.ddc_{env}.lambda_edge_function

}
output "lambda_integration_graphql" {

  description = "The ARN of Lambda integration_graphql function"
  value       = module.ddc_{env}.lambda_integration_graphql

}
output "lambda_subjects_for_study" {

  description = "The ARN of Lambda subjects_for_study function"
  value       = module.ddc_{env}.lambda_subjects_for_study

}
output "lambda_imedi_auth_lambda" {

  description = "The ARN of Lambda imedi_auth_lambda function"
  value       = module.ddc_{env}.lambda_imedi_auth_lambda

}
output "lambda_update_users_from_rave" {

  description = "The ARN of Lambda update_users_from_rave function"
  value       = module.ddc_{env}.lambda_update_users_from_rave

}
output "lambda_graphql" {

  description = "The ARN of Lambda graphql function"
  value       = module.ddc_{env}.lambda_graphql

}
output "lambda_sync_subject_visits_from_rave" {

  description = "The ARN of Lambda sync_subject_visits_from_rave function"
  value       = module.ddc_{env}.lambda_sync_subject_visits_from_rave

}
output "lambda_studies_from_rave" {

  description = "The ARN of Lambda studies_from_rave function"
  value       = module.ddc_{env}.lambda_studies_from_rave

}
output "lambda_update_subjects_visits_from_rave" {

  description = "The ARN of Lambda update_subjects_visits_from_rave function"
  value       = module.ddc_{env}.lambda_update_subjects_visits_from_rave

}
output "lambda_load_subjects_queue_table" {

  description = "The ARN of Lambda load_subjects_queue_table function"
  value       = module.ddc_{env}.lambda_load_subjects_queue_table

}
output "portal_bucket" {

  description = "The Name of the portal bucket"
  value       = module.ddc_{env}.portal_bucket

}
output "portal_log_bucket" {

  description = "The Name of the loggin bucket for portal"
  value       = module.ddc_{env}.portal_log_bucket

}
output "lb_sg" {

  description = "The loadbalancer security group name"
  value       = module.ddc_{env}.lb_sg

}

output "lb_access_logs" {

  description = "The loadbalancer access log bucket name"
  value       = module.ddc_{env}.lb_access_logs

}

output "alb" {

  description = "The alb dns name"
  value       = module.ddc_{env}.alb

}
output "alb_imedidata_domain" {

  description = "The loadbalancer security group name"
  value       = module.ddc_{env}.alb_imedidata_domain

}
output "alb_graphql_domain" {

  description = "The alb domain for graphql domain"
  value       = module.ddc_{env}.alb_graphql_domain

}
output "rest_api" {

  description = "The Api gateway Name (ARN)"
  value       = module.ddc_{env}.rest_api

}
output "step_function_update_users_from_rave" {

  description = "The ARN of the Step Function"
  value       = module.ddc_{env}.step_function_update_users_from_rave

}
output "step_function_load_subject_queue" {

  description = "The ARN of the Step Function"
  value       = module.ddc_{env}.step_function_load_subject_queue

}
output "step_function_update_from_ravev3" {

  description = "The ARN of the Step Function"
  value       = module.ddc_{env}.step_function_update_from_ravev3

}
output "codebuild_project_portal" {

  description = "The name of the CodeBuild project name"
  value       = module.ddc_{env}.codebuild_project_portal

}
output "codebuild_project_lambda" {

  description = "The name of the CodeBuild project name"
  value       = module.ddc_{env}.codebuild_project_lambda

}
output "codebuild_lambdadeploy" {

  description = "The name of the CodeBuild project name"
  value       = module.ddc_{env}.codebuild_lambdadeploy

}
output "codepipeline" {

  description = "The name of the codepipeline name"
  value       = module.ddc_{env}.codepipeline

}
output "cloudfrontID" {

  description = "cloudfront distribution ID"
  value       = module.ddc_{env}.cloudfrontID

}

output "kms_key_id" {

  description = "kms key id"
  value       = module.ddc_{env}.kms_key_id

}

Architecture and Security Diagram

This diagram depicts the high level architectural components as well as the security components of the application and infrastructure.

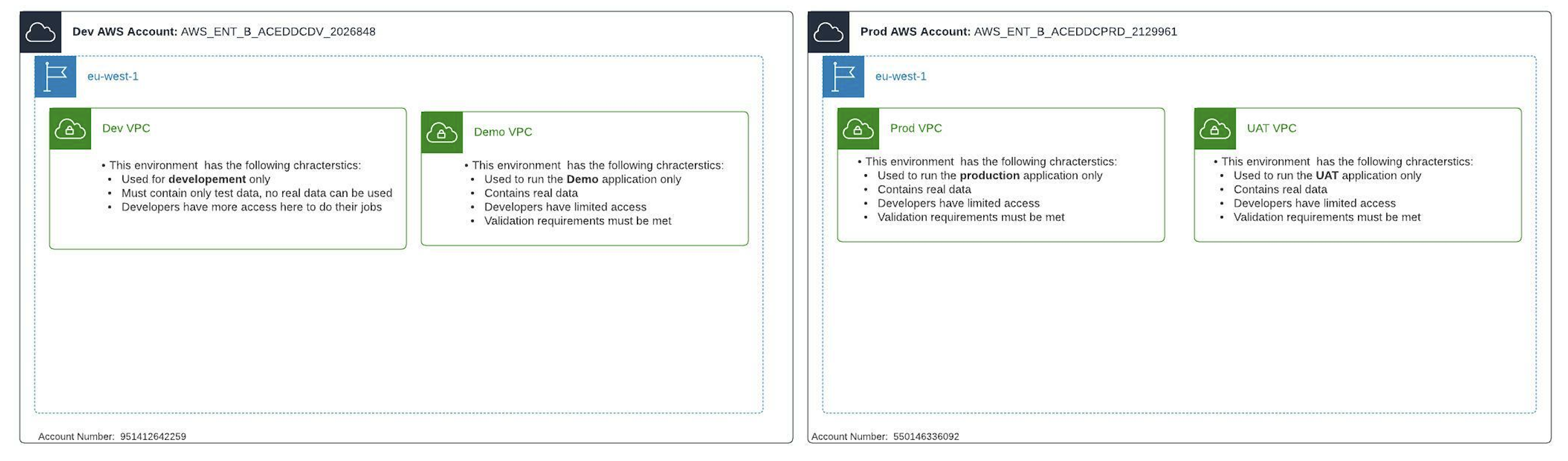

Environment Diagram

This diagram depicts the environments that are spread across the two DDC AWS Accounts.

CI/CD Approach

Post-installation Requirements

Not applicable.
